2013:Multiple Fundamental Frequency Estimation & Tracking Results
Contents
Introduction[edit]
These are the results for the 2008 running of the Multiple Fundamental Frequency Estimation and Tracking task. For background information about this task set please refer to the 2013:Multiple Fundamental Frequency Estimation & Tracking page.
General Legend[edit]
| Sub code | Submission name | Abstract | Contributors |
|---|---|---|---|
| CDM1 | CDM1 | Tian Cheng, Simon Dixon, Matthias Mauch | |
| CDM2 | CDM2 | Tian Cheng, Simon Dixon, Matthias Mauch | |
| CDM3 | CDM3 | Tian Cheng, Simon Dixon, Matthias Mauch | |
| BW1 | MSSIPLCA_fast_MultiF0 | Emmanouil Benetos, Tillman Weyde | |
| BW2 | MSSIPLCA_fast_NoteTracking1 | Emmanouil Benetos, Tillman Weyde | |
| BW3 | MSSIPLCA_fast_NoteTracking2 | Emmanouil Benetos, Tillman Weyde |
Task 1: Multiple Fundamental Frequency Estimation (MF0E)[edit]
MF0E Overall Summary Results[edit]
Below are the average scores across 40 test files. These files come from 3 different sources: woodwind quintet recording of bassoon, clarinet, horn,flute and oboe (UIUC); Rendered MIDI using RWC database donated by IRCAM and a quartet recording of bassoon, clarinet, violin and sax donated by Dr. Bryan Pardo`s Interactive Audio Lab (IAL). 20 files coming from 5 sections of the woodwind recording where each section has 4 files ranging from 2 polyphony to 5 polyphony. 12 files from IAL, coming from 4 different songs ranging from 2 polyphony to 4 polyphony and 8 files from RWC synthesized midi ranging from 2 different songs ranging from 2 polphony to 5 polyphony.
| BW1 | CDM1 | CDM2 | |
|---|---|---|---|
| Accuracy | 0.662 | 0.620 | 0.620 |
| Accuracy Chroma | 0.694 | 0.660 | 0.660 |
Detailed Results[edit]
| Precision | Recall | Accuracy | Etot | Esubs | Emiss | Efa | ||
|---|---|---|---|---|---|---|---|---|
| BW1 | 0.771 | 0.735 | 0.662 | 0.392 | 0.112 | 0.153 | 0.128 | |
| CDM1 | 0.741 | 0.694 | 0.620 | 0.443 | 0.128 | 0.178 | 0.137 | |
| CDM2 | 0.741 | 0.694 | 0.620 | 0.443 | 0.128 | 0.178 | 0.137 |
Detailed Chroma Results[edit]
Here, accuracy is assessed on chroma results (i.e. all F0's are mapped to a single octave before evaluating)
| Precision | Recall | Accuracy | Etot | Esubs | Emiss | Efa | ||
|---|---|---|---|---|---|---|---|---|
| BW1 | 0.808 | 0.774 | 0.694 | 0.354 | 0.073 | 0.153 | 0.128 | |
| CDM1 | 0.789 | 0.742 | 0.660 | 0.395 | 0.080 | 0.178 | 0.137 | |
| CDM2 | 0.789 | 0.742 | 0.660 | 0.395 | 0.080 | 0.178 | 0.137 |
Individual Results Files for Task 1[edit]
BW1= Emmanouil Benetos, Tillman Weyde
CDM1= Tian Cheng, Simon Dixon, Matthias Mauch
CDM2= Tian Cheng, Simon Dixon, Matthias Mauch
Info about the filenames[edit]
The filenames starting with part* comes from acoustic woodwind recording, the ones starting with RWC are synthesized. The legend about the instruments are:
bs = bassoon, cl = clarinet, fl = flute, hn = horn, ob = oboe, vl = violin, cel = cello, gtr = guitar, sax = saxophone, bass = electric bass guitar
Run Times[edit]
| sub_ID | Runtime(sec) |
|---|---|
| BW1 | 3374 |
| CDM1 | 62027 |
| CDM2 | 61992 |

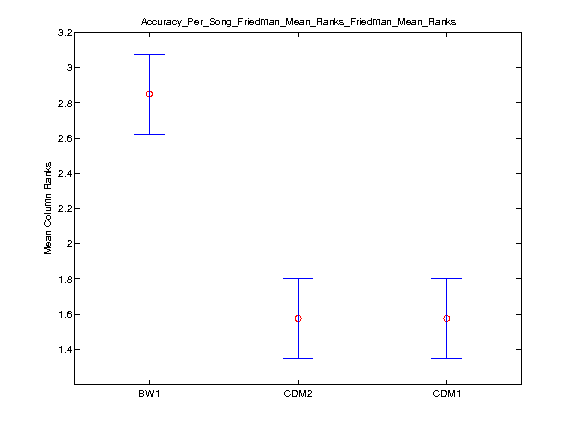

Friedman tests for Multiple Fundamental Frequency Estimation (MF0E)[edit]
The Friedman test was run in MATLAB to test significant differences amongst systems with regard to the performance (accuracy) on individual files.
Tukey-Kramer HSD Multi-Comparison[edit]
| TeamID | TeamID | Lowerbound | Mean | Upperbound | Significance |
|---|---|---|---|---|---|
| BW1 | CDM2 | 0.8211 | 1.2750 | 1.7289 | TRUE |
| BW1 | CDM1 | 0.8211 | 1.2750 | 1.7289 | TRUE |
| CDM2 | CDM1 | -0.4539 | 0.0000 | 0.4539 | FALSE |
Task 2:Note Tracking (NT)[edit]
NT Mixed Set Overall Summary Results[edit]
This subtask is evaluated in two different ways. In the first setup , a returned note is assumed correct if its onset is within +-50ms of a ref note and its F0 is within +- quarter tone of the corresponding reference note, ignoring the returned offset values. In the second setup, on top of the above requirements, a correct returned note is required to have an offset value within 20% of the ref notes duration around the ref note`s offset, or within 50ms whichever is larger.
A total of 34 files were used in this subtask: 16 from woodwind recording, 8 from IAL quintet recording and 6 piano.
| BW2 | BW3 | CDM3 | |
|---|---|---|---|
| Ave. F-Measure Onset-Offset | 0.3264 | 0.2745 | 0.2880 |
| Ave. F-Measure Onset Only | 0.5533 | 0.4754 | 0.5071 |
| Ave. F-Measure Chroma | 0.3383 | 0.3142 | 0.3058 |
| Ave. F-Measure Onset Only Chroma | 0.5751 | 0.5512 | 0.5439 |
Detailed Results[edit]
| Precision | Recall | Ave. F-measure | Ave. Overlap | |
|---|---|---|---|---|
| BW2 | 0.335 | 0.334 | 0.326 | 0.879 |
| BW3 | 0.237 | 0.342 | 0.274 | 0.879 |
| CDM3 | 0.268 | 0.328 | 0.288 | 0.857 |
Detailed Chroma Results[edit]
Here, accuracy is assessed on chroma results (i.e. all F0's are mapped to a single octave before evaluating)
| Precision | Recall | Ave. F-measure | Ave. Overlap | |
|---|---|---|---|---|
| BW2 | 0.347 | 0.347 | 0.338 | 0.875 |
| BW3 | 0.270 | 0.395 | 0.314 | 0.877 |
| CDM3 | 0.283 | 0.350 | 0.306 | 0.854 |
Results Based on Onset Only[edit]
| Precision | Recall | Ave. F-measure | Ave. Overlap | |
|---|---|---|---|---|
| BW2 | 0.592 | 0.546 | 0.553 | 0.726 |
| BW3 | 0.419 | 0.576 | 0.475 | 0.720 |
| CDM3 | 0.479 | 0.562 | 0.507 | 0.702 |
Chroma Results Based on Onset Only[edit]
| Precision | Recall | Ave. F-measure | Ave. Overlap | |
|---|---|---|---|---|
| BW2 | 0.615 | 0.570 | 0.575 | 0.712 |
| BW3 | 0.483 | 0.675 | 0.551 | 0.684 |
| CDM3 | 0.513 | 0.606 | 0.544 | 0.682 |
Run Times[edit]
| sub_ID | Runtime(sec) |
|---|---|
| BW2 | 3706 |
| BW3 | 2203 |
| CDM3 | 68470 |

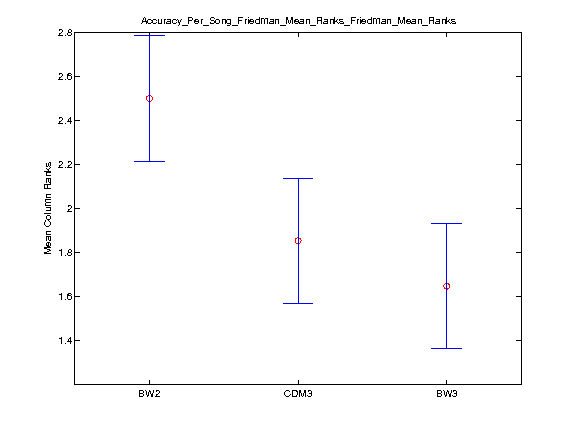

Friedman Tests for Note Tracking[edit]
The Friedman test was run in MATLAB to test significant differences amongst systems with regard to the F-measure on individual files.
Tukey-Kramer HSD Multi-Comparison for Task2[edit]
| TeamID | TeamID | Lowerbound | Mean | Upperbound | Significance |
|---|---|---|---|---|---|
| BW2 | CDM3 | 0.0786 | 0.6471 | 1.2155 | TRUE |
| BW2 | BW3 | 0.2845 | 0.8529 | 1.4214 | TRUE |
| CDM3 | BW3 | -0.3625 | 0.2059 | 0.7743 | FALSE |
NT Piano-Only Overall Summary Results[edit]
This subtask is evaluated in two different ways. In the first setup , a returned note is assumed correct if its onset is within +-50ms of a ref note and its F0 is within +- quarter tone of the corresponding reference note, ignoring the returned offset values. In the second setup, on top of the above requirements, a correct returned note is required to have an offset value within 20% of the ref notes duration around the ref note`s offset, or within 50ms whichever is larger. 6 piano recordings are evaluated separately for this subtask.
| BW2 | BW3 | CDM3 | |
|---|---|---|---|
| Ave. F-Measure Onset-Offset | 0.1596 | 0.1940 | 0.1551 |
| Ave. F-Measure Onset Only | 0.5359 | 0.6110 | 0.5723 |
| Ave. F-Measure Chroma | 0.1653 | 0.2055 | 0.1692 |
| Ave. F-Measure Onset Only Chroma | 0.5455 | 0.6274 | 0.5904 |
Detailed Results[edit]
| Precision | Recall | Ave. F-measure | Ave. Overlap | |
|---|---|---|---|---|
| BW2 | 0.186 | 0.141 | 0.160 | 0.831 |
| BW3 | 0.193 | 0.195 | 0.194 | 0.831 |
| CDM3 | 0.158 | 0.153 | 0.155 | 0.788 |
Detailed Chroma Results[edit]
Here, accuracy is assessed on chroma results (i.e. all F0's are mapped to a single octave before evaluating)
| Precision | Recall | Ave. F-measure | Ave. Overlap | |
|---|---|---|---|---|
| BW2 | 0.192 | 0.146 | 0.165 | 0.824 |
| BW3 | 0.205 | 0.207 | 0.205 | 0.819 |
| CDM3 | 0.172 | 0.167 | 0.169 | 0.780 |
Results Based on Onset Only[edit]
| Precision | Recall | Ave. F-measure | Ave. Overlap | |
|---|---|---|---|---|
| BW2 | 0.610 | 0.483 | 0.536 | 0.559 |
| BW3 | 0.608 | 0.616 | 0.611 | 0.562 |
| CDM3 | 0.575 | 0.574 | 0.572 | 0.538 |
Chroma Results Based on Onset Only[edit]
| Precision | Recall | Ave. F-measure | Ave. Overlap | |
|---|---|---|---|---|
| BW2 | 0.622 | 0.491 | 0.546 | 0.555 |
| BW3 | 0.624 | 0.633 | 0.627 | 0.557 |
| CDM3 | 0.593 | 0.592 | 0.590 | 0.538 |
Individual Results Files for Task 2[edit]
BW2= Emmanouil Benetos, Tillman Weyde
BW3= Emmanouil Benetos, Tillman Weyde
CDM3= Tian Cheng, Simon Dixon, Matthias Mauch
